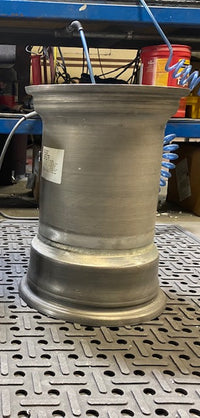

Give your custom golf cart a wide, purpose-built footprint with the RealWheel 12x14 Aluminum Golf Cart Wheel. Its 12-inch diameter accommodates popular off-road golf cart tire options, while the substantial 14-inch width creates the flotation, stability, and aggressive appearance desired for lifted and long-travel builds.
Made in the USA from structural-quality 6061-T6 aircraft-grade aluminum, this specialty wheel is engineered for demanding recreational applications. Spun aluminum wheel halves, certified double heat treatment, and precision CNC machining help produce a strong, uniform, and accurately formed wheel that stands apart from conventional stamped or cast golf cart rims.
⚠️ IMPORTANT: PRICE IS FOR ONE (1) WHEEL
Each order quantity includes ONE (1) RealWheel aluminum wheel only. Tires, lug nuts, valve stems, and additional wheels are not included. Select a quantity of 4 to order four wheels.
MADE-TO-ORDER LEAD TIME: APPROXIMATELY 4–8 WEEKS
This specialty wheel is manufactured to order. Production times are estimates and may vary. Please allow approximately 4–8 weeks for manufacturing before shipment.
Wheel size clarification: The RealWheel 12x14 measures 12 inches in diameter and 14 inches wide. The 14-inch measurement refers to the wheel’s width—not its diameter.
RealWheel 12x14 Specifications
| Wheel Diameter |
12 inches |
| Wheel Width |
14 inches |
| Bolt Pattern |
4x4 inches (4x101.6 mm) |
| Backspacing |
6 inches |
| Material |
6061-T6 aircraft-grade aluminum |
| Tire Configuration |
Tubeless |
| Manufacturing |
Spun, double heat-treated, and CNC-machined |
| Country of Manufacture |
Made in the USA |
Engineered for Strength and Precision
Rather than stamping the wheel halves into shape, RealWheel spins them to precise tolerances. This production method promotes uniform aluminum thickness throughout the wheel, helping create a rounder and straighter finished assembly.
- Structural-quality 6061-T6 aircraft-grade aluminum
- Certified double heat treatment enhances material strength
- Precision CNC machining maintains accurate tolerances
- Spun wheel halves provide consistent material thickness
- Engineered for a strong, round, and straight finished profile
- Tubeless construction for compatible tubeless tires
- Manufactured in the United States
Built for Wide-Tire Golf Cart Projects
The combination of a 12-inch wheel diameter and 14-inch width makes this RealWheel particularly suited to custom golf carts using wide flotation, mud, or recreational off-road tires. Compared with the 10-inch-diameter RealWheel models, the 12-inch diameter may provide access to different tire profiles and additional wheel clearance for compatible components.
Kenda Bear Claw tires are among the most popular tire choices for these wide RealWheel applications. Always verify that the exact tire size is approved by its manufacturer for installation on a 14-inch-wide wheel.
Golf Cart Fitment and Clearance
The 4x4-inch bolt pattern is commonly used on Club Car, EZGO, Yamaha, and numerous other golf carts. Bolt-pattern compatibility alone does not guarantee that this extra-wide wheel will fit a particular cart.
With 6 inches of backspacing, part of the wheel extends inward toward the suspension and drivetrain while the remaining width extends outward to create a broader stance. Careful measurements are essential before ordering.
Verify the following for your specific build:
- The golf cart uses a 4x4-inch four-lug bolt pattern
- The hub and mounting surface are compatible with the wheel
- Six inches of backspacing clears the suspension, steering, brakes, frame, motor, and transaxle
- The selected tire is approved for a 12-inch-diameter by 14-inch-wide wheel
- The lift kit or long-travel suspension provides adequate vertical clearance
- The complete assembly clears the cart through full steering movement
- The tire will not contact the body or frame during suspension compression
Fitment warning: The RealWheel 12x14 is not a direct replacement for a standard factory wheel. Installation may require a lift kit, long-travel suspension, wheel spacers, body modifications, or other custom fabrication. Consult a qualified golf cart builder before ordering.
Advantages of the 12x14 Configuration
- Massive 14-inch width creates an aggressive custom stance
- Supports compatible wide flotation and off-road tire applications
- 12-inch diameter offers a different tire selection than the 10-inch RealWheel models
- Six-inch backspacing balances the inward and outward wheel position
- Aircraft-grade aluminum reduces weight compared with many similarly sized steel wheels
- Precision manufacturing promotes consistent wheel shape and rotation
- Tubeless design eliminates the need for an inner tube with compatible tires
- American-made construction for custom and specialty golf cart projects
What Is Included?
- One (1) RealWheel 12-inch-diameter by 14-inch-wide aluminum golf cart wheel
Not Included
- Tire
- Valve stem
- Lug nuts
- Center cap
- Wheel spacers or adapters
- Lift kit or suspension components
- Additional wheels
Installation Recommendations
- Have the tire mounted by an installer experienced with extra-wide aluminum wheels.
- Use a compatible tubeless valve stem and properly sized tubeless tire.
- Confirm the tire manufacturer approves installation on a 14-inch-wide rim.
- Use lug nuts with the correct thread, diameter, and seat style for the cart and wheel.
- Torque all lug nuts to the appropriate specification using a calibrated torque wrench.
- Inspect steering, suspension, body, brake, and drivetrain clearance before driving.
- Recheck lug-nut torque following the initial break-in period.
Ordering reminder: The listed price is for one wheel only. Select a quantity of 4 to order four matching RealWheel 12x14 wheels.
Extra-wide wheels and tires can alter steering effort, suspension loading, braking, handling, and vehicle stability. Install this product only on a properly configured golf cart and operate the vehicle responsibly.
