Golf Cart Wheel and Tire Guide
Upgrading your golf cart wheels and tires is one of the best ways to improve performance, traction, and overall style. Whether you’re cruising paved streets, navigating rough terrain, or building a lifted off-road cart, the right combination of tires and rims can completely transform how your cart looks and drives.
At GCMod, we offer a wide selection of golf cart wheels, tires, and complete rim and tire packages designed to fit the most popular carts including Club Car, EZGO, and Yamaha. Choose from street-friendly low-profile setups, aggressive all-terrain tread patterns, or oversized off-road tires built for lifted carts and rugged use. Many options are available as pre-mounted and balanced wheel and tire packages, making installation fast and hassle-free.
Golf Cart Wheels vs Golf Cart Rims (Is There a Difference?)
The terms golf cart wheels and golf cart rims are often used interchangeably. Technically, the wheel refers to the full metal component, while the rim is the outer edge that holds the tire bead. In the golf cart world, both terms typically describe the same part. The metal wheel your tire mounts to. No matter which term you use, choosing the correct size, bolt pattern, and offset is critical for proper fitment and safe operation.
Golf Cart Tire Types Explained
Choosing the right tire depends on how and where you drive your cart. Golf cart tire types are designed for specific surfaces, with options for street, turf, all-terrain, and off-road use to deliver the right balance of traction, ride comfort, and performance.

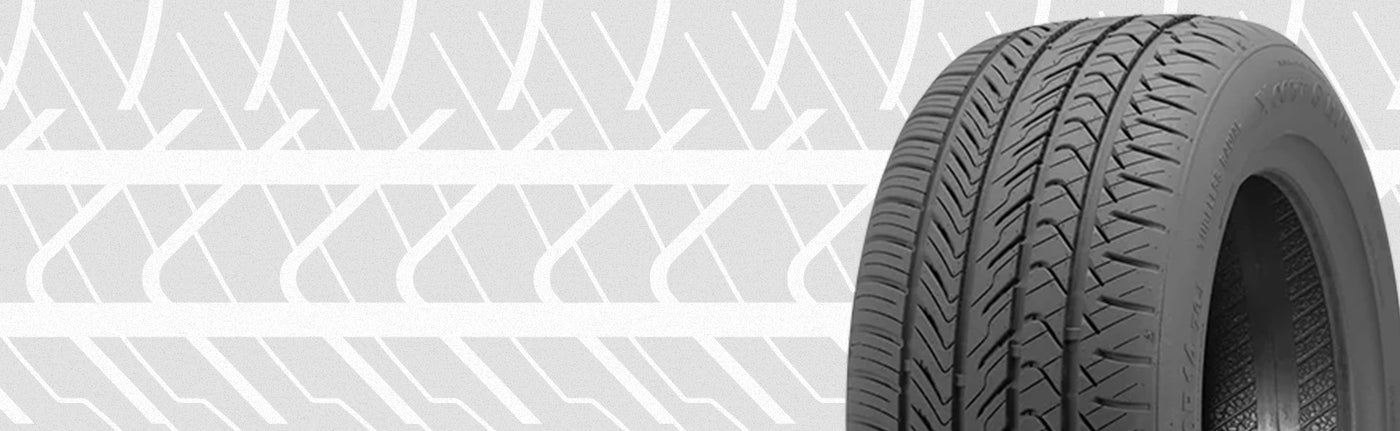

Street & Turf Tires
Designed for smooth pavement and grass, these tires offer quiet operation, long tread life, and minimal turf impact — ideal for neighborhood carts and golf course use.

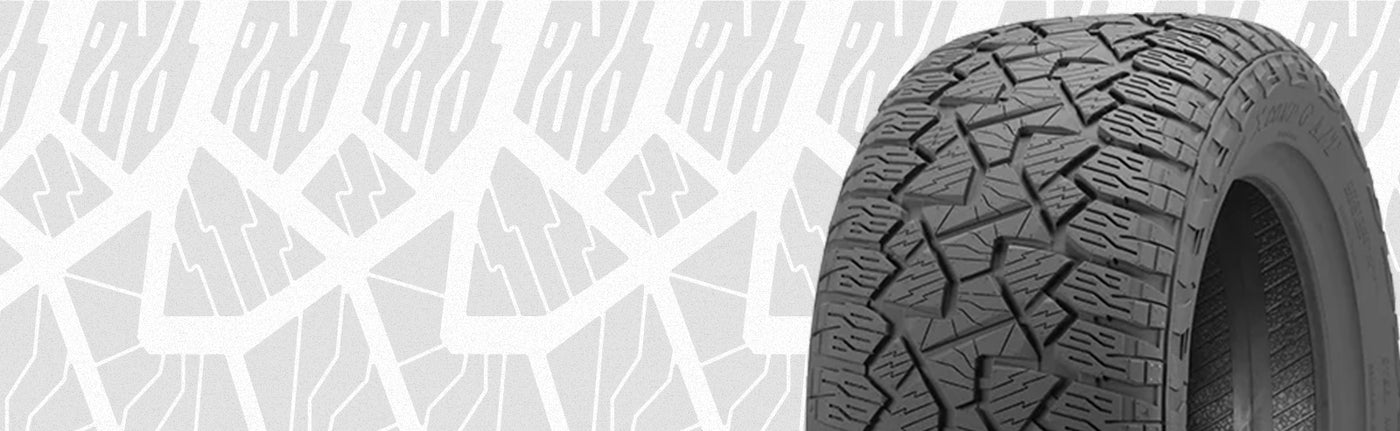

All-Terrain Tires
Designed for mixed surfaces, all-terrain golf cart tires balance ride comfort and dependable traction on pavement, dirt, gravel, and light trails.

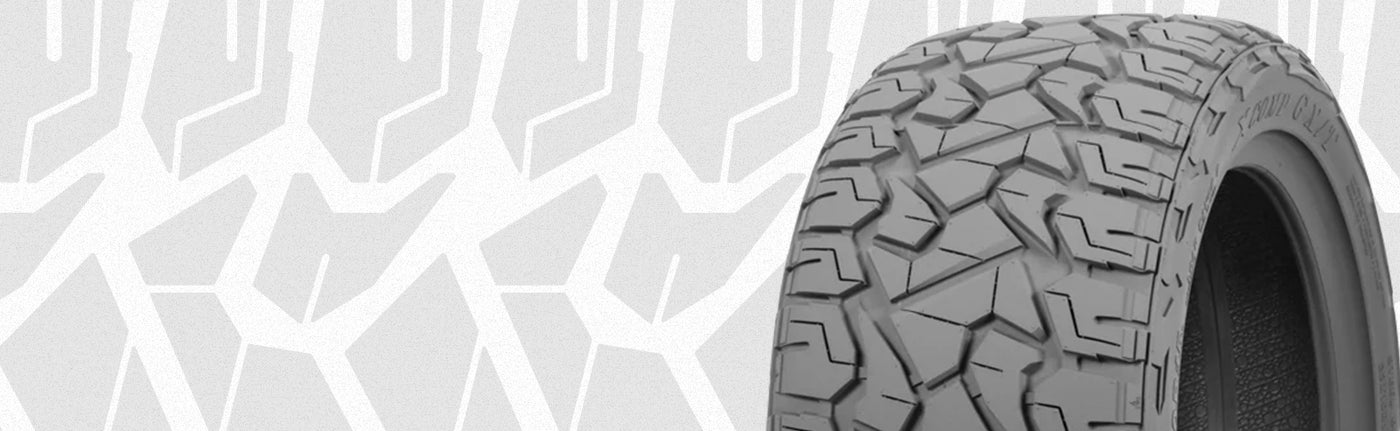

Off-Road / Mud Tires
Built for lifted carts and aggressive terrain, these tires feature deeper tread patterns and reinforced construction for maximum grip in mud, sand, and uneven ground.
Choosing the Right Golf Cart Wheel Size
Choosing the right golf cart wheel size is primarily about achieving the look you want while maintaining proper fitment and clearance. While wheel size doesn’t directly increase speed or power, it plays a major role in aesthetics, stance, and compatibility with different tire sizes. Selecting the correct width, diameter, and offset ensures your wheels and tires fit correctly and perform as intended.

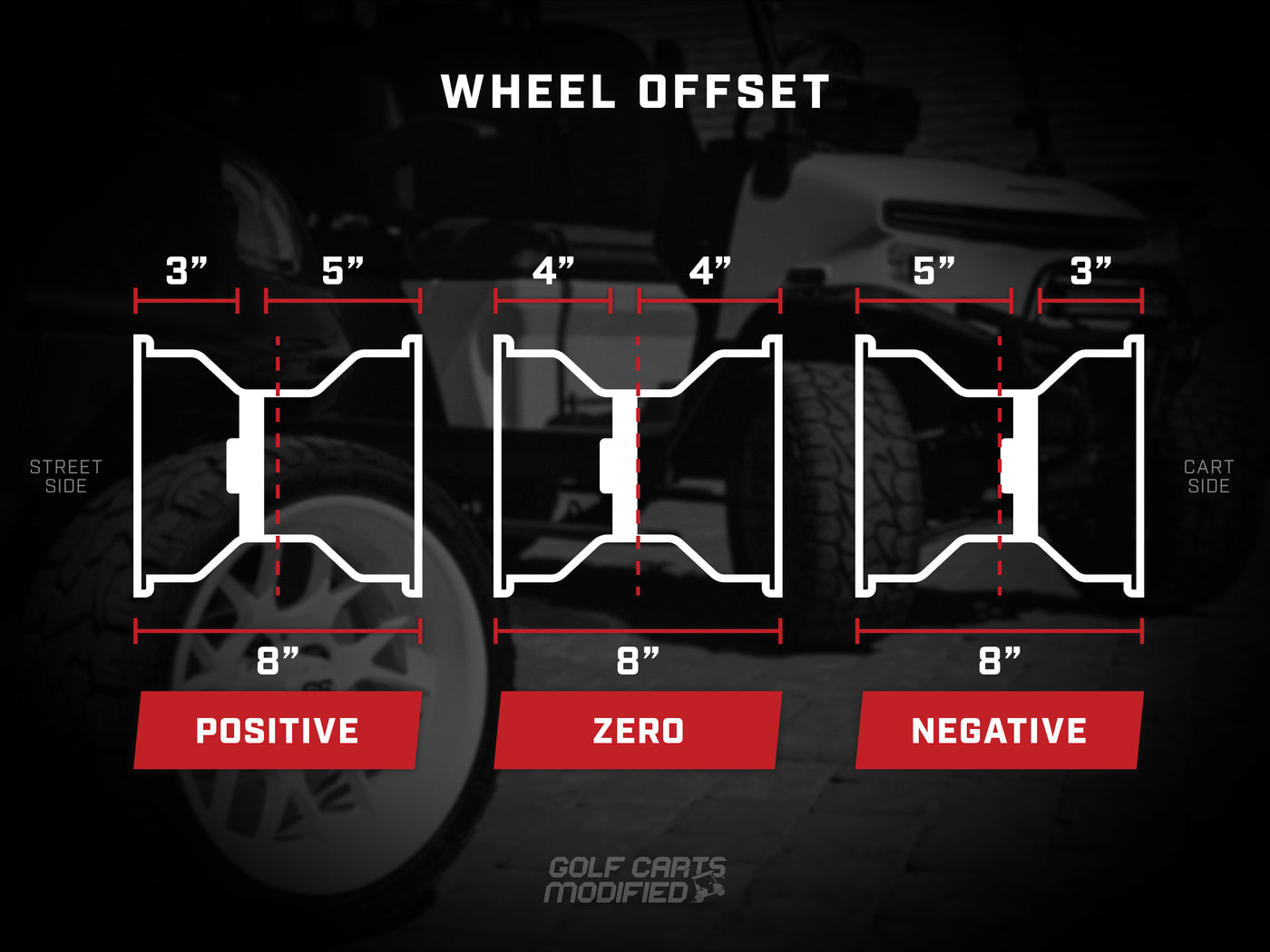

Wheel Offset
Offset refers to the distance between the wheel’s mounting surface and its centerline and determines how your wheels and tires sit under the cart. Golf cart wheels often use a negative offset, which positions the mounting surface closer to the inside of the wheel and pushes the wheel and tire outward for added clearance.
A negative offset:
- Creates a wider stance for improved stability
- Allows larger tires to fit without rubbing
- Improves clearance on lifted carts
⚠️ Using the correct offset ensures proper fitment for larger tire combinations, while the wrong offset can cause rubbing or clearance issues—especially on lifted carts.

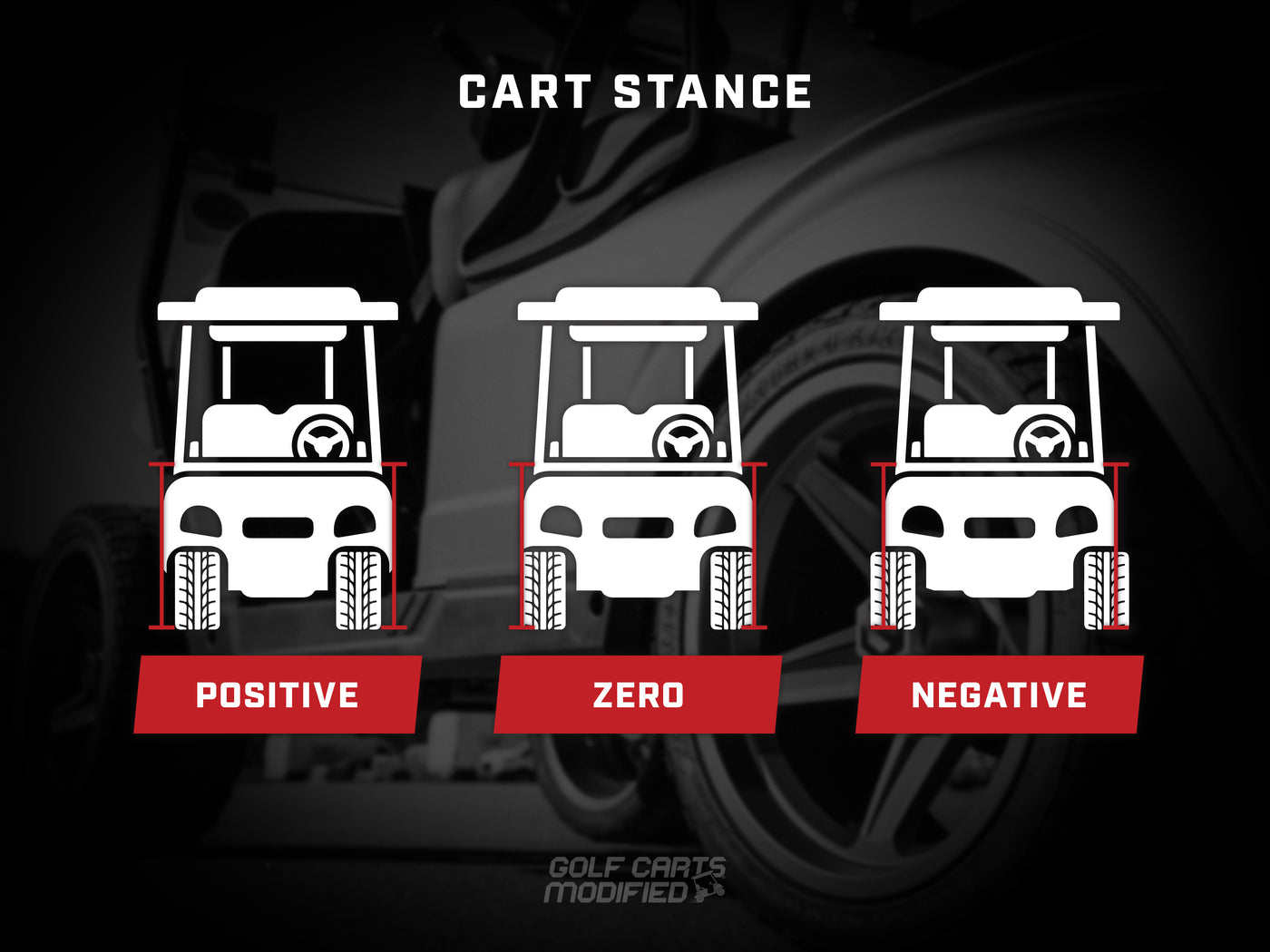

Cart Stance
Wheel width plays a major role in your golf cart’s overall stance. Measured from bead seat to bead seat, common widths include 6", 7", 8", and 10".
Narrower wheels create a clean, traditional stance that works well on stock-height carts. Wider wheels add visual weight and support a broader, more aggressive look—especially when paired with larger tires, a lift kit, and the proper offset.
- 6"–7" widths: Classic, streamlined stance
- 8" widths: Wider, sportier appearance
- 10" widths: Bold, aggressive custom stance
A wider wheel can also improve stability through turns, but width is only part of the fitment equation. Wheel offset, tire size, suspension setup, and fender clearance all affect how far the wheels sit inward or outward.

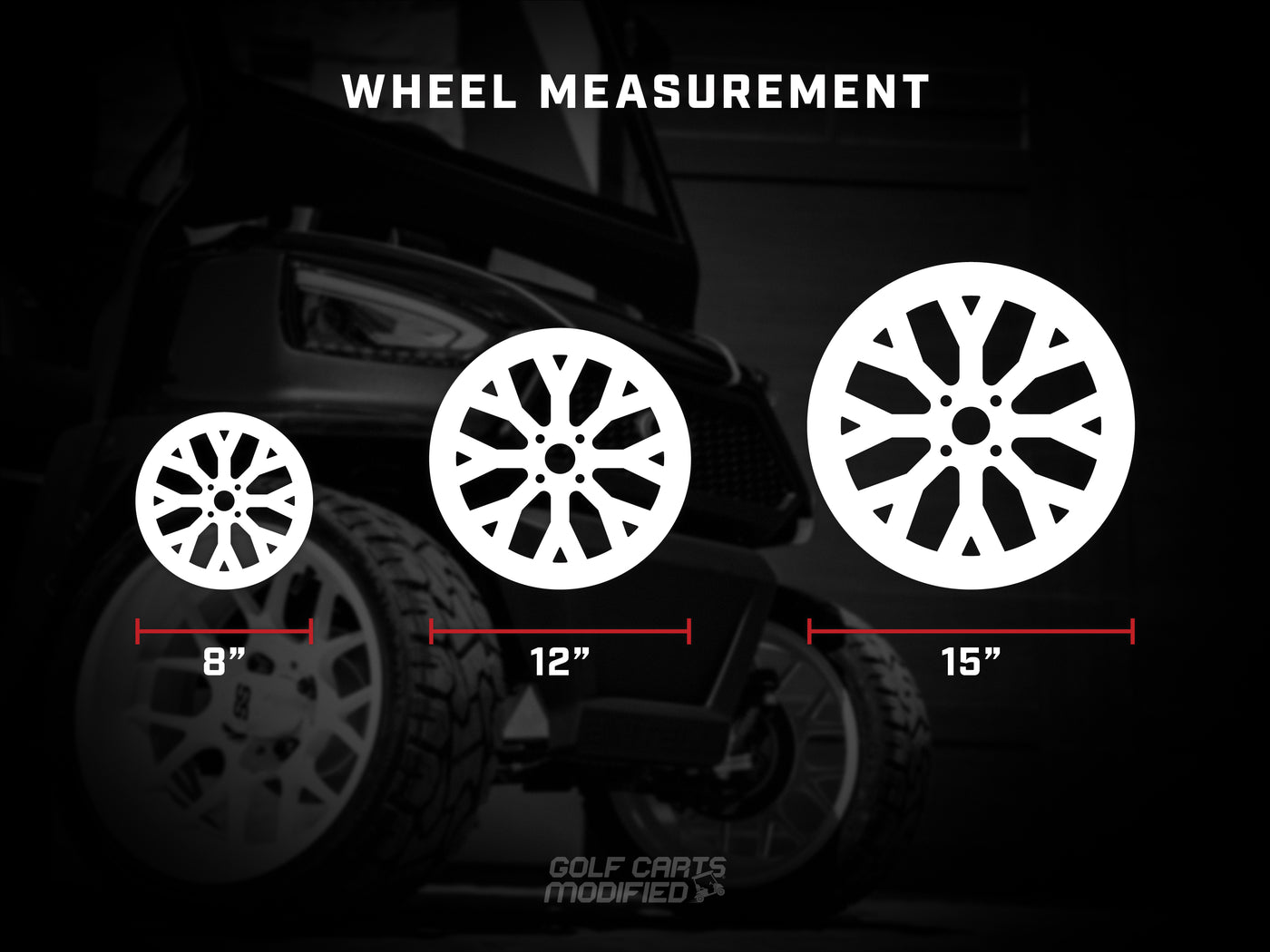

Wheel Diameter
Wheel diameter is measured from the top to the bottom of the wheel and determines which tire sizes can be installed.
We offer golf cart wheels in the following diameters:
- 8" and 10" – Classic, factory-style sizing
- 12" and 14" – Popular for street builds and custom carts
- 15" – Ideal for lifted carts and aggressive off-road setups
Larger diameter wheels typically create a sportier, modern look, while smaller wheels maintain a traditional appearance and allow for taller tire sidewalls.
Why Wheel Size, Width, and Offset Matter Together
Wheel width, diameter, and offset work together to determine overall fitment. A wider wheel or larger diameter often requires the correct offset to prevent rubbing and maintain proper alignment. This is especially important when installing pre-mounted golf cart wheel and tire packages, where the components are designed to work together for optimal performance and appearance.
If you’re unsure which wheel size or offset is right for your cart, our team can help you choose a setup that fits your cart, driving style, and desired look. Give us a call at 571-88-CARTS (571-882-2787).
Golf Cart Tire Size & Lift Kit Fitment Guide
Use the chart below to compare golf cart tire sizes with common lift kit
configurations for Club Car, E-Z-GO, and Yamaha golf carts. Tire fitment
can vary by cart, lift kit, tire width, and other modifications, so review
the notes carefully before selecting your wheel and tire setup.
| Cart / Model | Lift Kit | 19" OD |
20" OD Under 8.5" Wide |
20" OD 8.5" / 215mm or Wider |
21" OD | 22" OD | 23" OD | 25" OD |
|---|---|---|---|---|---|---|---|---|
| Club Car DS | Lo-Pro 3/4" Lift Block | Yes | Yes | No | No | No | No | No |
| 4" Z-Bracket | Yes | Yes | Yes | Yes | Yes | No | No | |
| 4" A-Arm | Yes | Yes | Yes | Yes | Yes (5) | No | No | |
| 6" Spindle (Jakes) | Yes | Yes | Yes | Yes | Yes (5) | No | No | |
| 6" A-Arm | No | No | Yes | Yes | Yes | Yes | Yes (3) | |
| Jake’s Long Travel | No | No | No | Yes | Yes | Yes | Yes | |
| Club Car Precedent | Lo-Pro 1" Lift Block | Requires HD springs | Requires HD springs (1) | No | No | No | No | No |
| 3" Spindle | Yes | Yes | Yes | Yes | Yes | No | No | |
| 3.5" A-Arm | Yes | Yes | Yes | Requires HD springs | Requires HD springs (2) | No | No | |
| 4" A-Arm | Yes | Yes | Yes | Yes | Yes | Yes (5) | No | |
| 6" A-Arm | No | Yes | Yes | Yes | Yes | Yes | Yes (2) (3) | |
| E-Z-GO Marathon | Jake’s Long Travel | No | No | No | Yes | Yes | Yes | Yes |
| E-Z-GO TXT/Medalist | 4" Axle | No | Yes | Yes | Yes | Yes | No | No |
| 5" Drop Axle | No | Yes | Yes | Yes | Yes | Yes | Yes | |
| 6" Spindle | No | Yes | Yes | Yes | Yes | Yes | Yes | |
| E-Z-GO RXV | Jake’s Long Travel | No | No | No | Yes | Yes | Yes | Yes |
| 5" Drop Frame | No | Yes | Yes | Yes | Yes | Yes | No | |
| Yamaha | 6" A-Arm | No | Yes | Yes | Yes | Yes | Yes | Yes |
| G22-29 3" Spindle | Yes | Yes | Yes | No | No | No | No | |
| Drive/Drive2 4" A-Arm | No | Yes | Yes | Yes (4) | Yes (4) | Yes (4) | No | |
| Drive 5" Drop Frame 2007-2016 | No | Yes | Yes | Yes (4) | Yes (4) | Yes (4) | No | |
| 6" Spindle | No | Yes | Yes | Yes | Yes | Yes | No | |
| Drive 6" A-Arm | No | Yes | Yes | Yes (4) | Yes (4) | Yes (4) | No | |
| G8-G29 Jake’s Long Travel | No | No | No | Yes | Yes | Yes | No | |
| Jake’s EFI Drive2 3" Spindle | No | Yes | Yes | Yes | Yes | No | No |
- Tires wider than 215mm / 8.5" may rub.
- Lo-Pro lift and HD springs required.
- Some side steps are not compatible.
- Rear skirt/fenders will need to be trimmed.
- Requires Jake’s Double A-Arm with extension plate.
Shop Wheels By Size
Browse popular golf cart wheel sizes to ensure proper clearance, correct stance, and compatibility with your lift kit or stock suspension. Whether you're running factory height or a lifted setup, choosing the right size helps maximize performance, ride quality, and overall fitment.
15" Wheels
Built for lifted and custom golf carts, 15" wheels deliver a bold stance, modern style, and room for larger tires.
14" Wheels
Built for lifted and custom golf carts, 14" wheels offer a bold stance, versatile styling, and many tire options.
12" Wheels
Built for stock-height or lifted golf carts, 12" wheels offer a sporty look, flexible fitment, and many tire options.
10" Wheels
Built for stock-height or mildly lifted carts, 10" wheels offer classic styling, easy fitment, and a smooth ride.
8" Wheels
Built for stock-height golf carts, 8" wheels offer classic styling, simple fitment, and a smooth, comfortable ride.

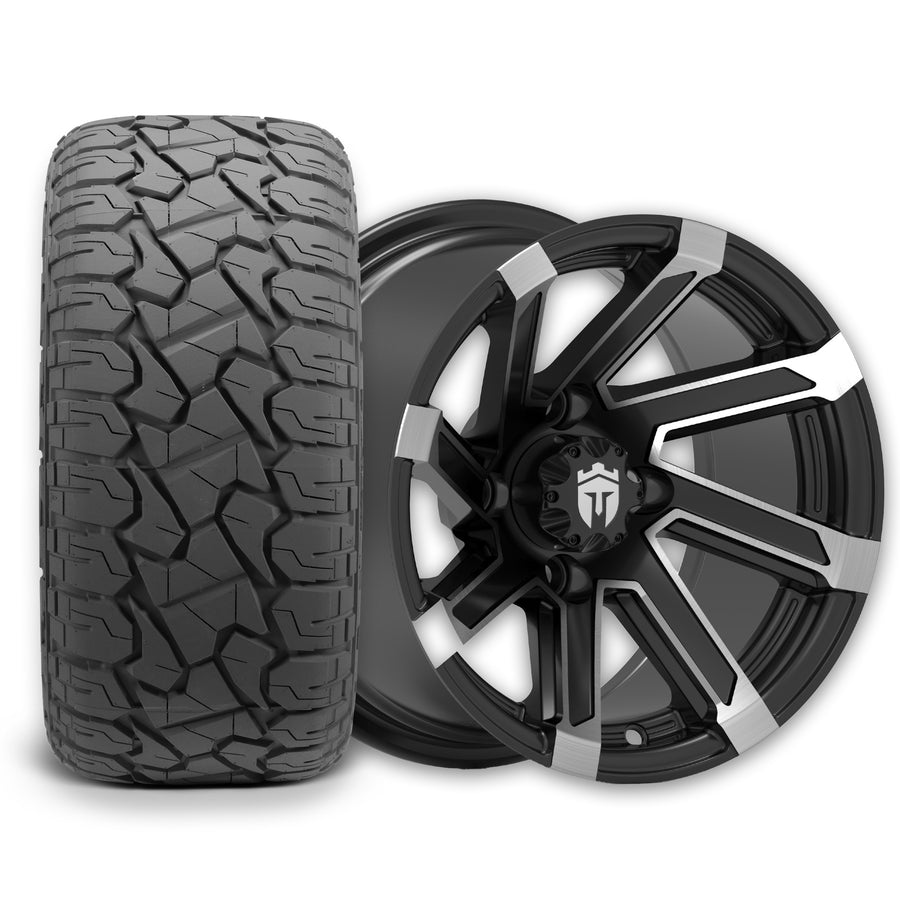

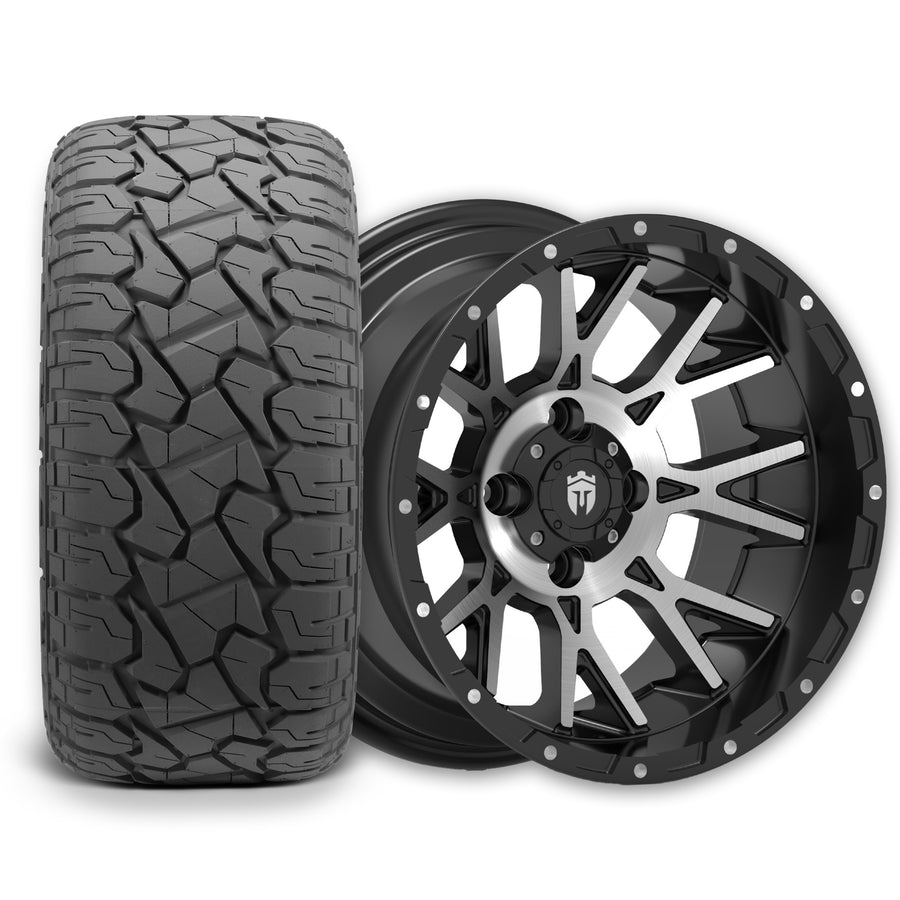

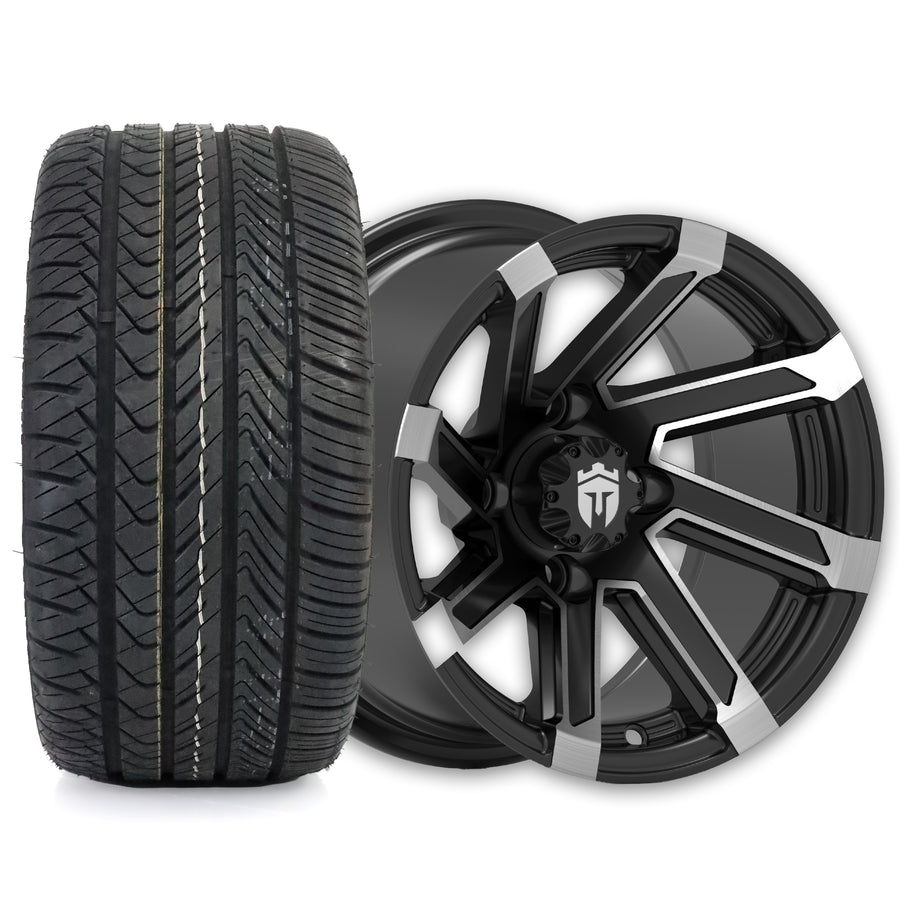

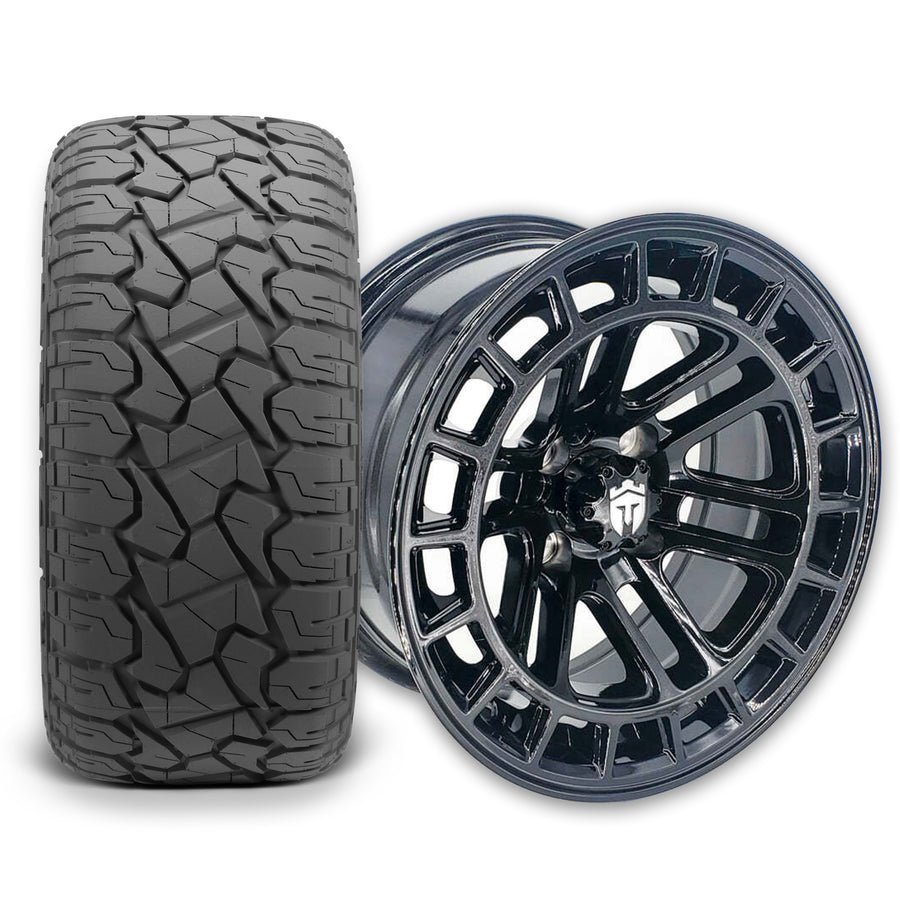

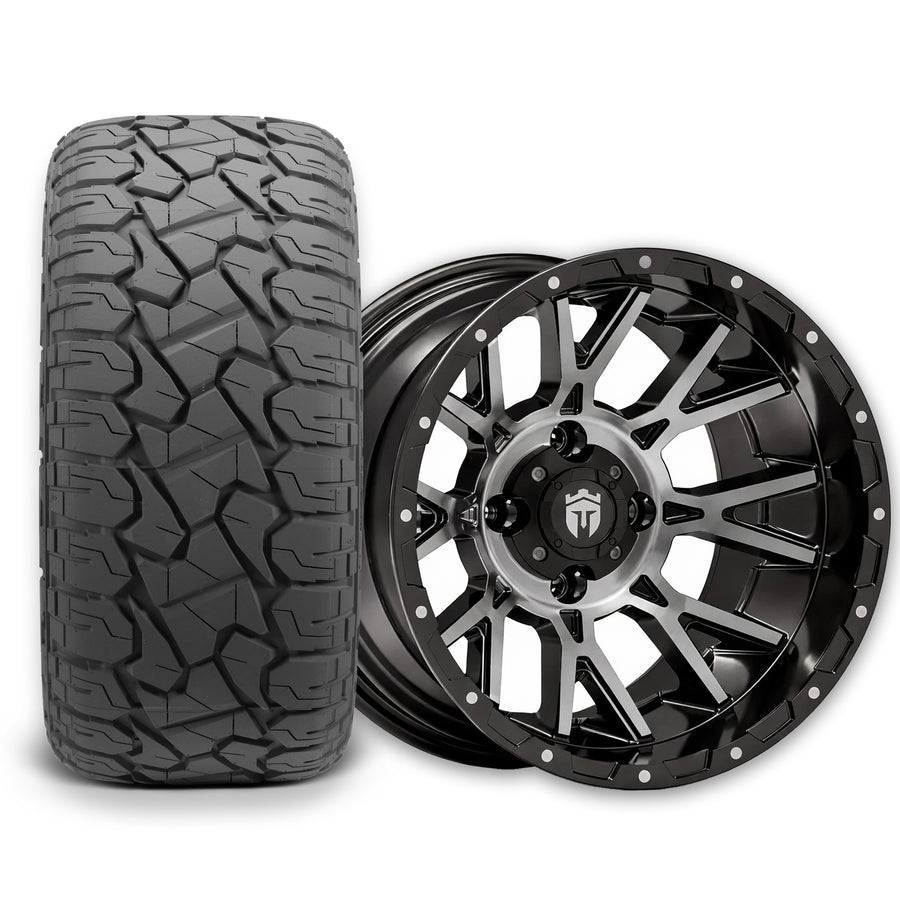

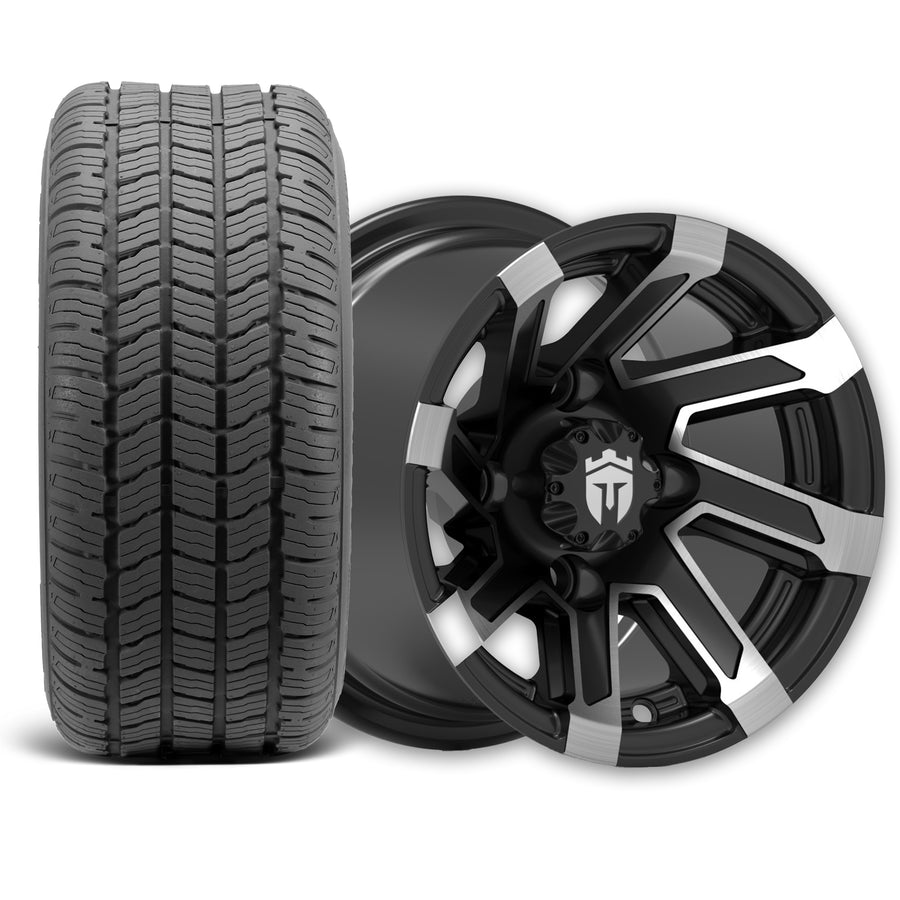

Complete Golf Cart Tire and Wheel Packages
Our golf cart wheel and tire packages combine perfectly matched rims and tires for optimal fitment and performance. Packages arrive pre-mounted and ready to be installed, saving you time and eliminating guesswork during installation.
Benefits of choosing a wheel and tire package:
- Guaranteed compatibility between wheel and tire
- Faster installation with no mounting required
- FREE SHIPPING!
Shop Best Selling Wheels
Upgrade your ride with high-quality golf cart wheels designed for strength, style, and perfect fitment. Whether you're replacing factory rims or building a fully customized setup. Our selection includes durable aluminum and alloy wheels available in multiple sizes, offsets, and finishes. These golf cart wheels enhance stance, improve durability, and give your cart the custom look it deserves.
Shop Best Selling Tires
These golf cart tires are built to deliver reliable traction, smooth ride quality, and long-lasting performance on and off the course. Whether you're replacing worn OEM tires or upgrading to an all-terrain or street tread. We offer everything from turf-friendly patterns to aggressive off-road designs. Our golf cart tires provide the durability and control you need for a wide range of driving conditions.
Shop Wheel & Tire Accessories
Our golf cart wheel and tire accessories include high-quality lug nuts and precision wheel spacers for a secure, performance-focused fit. Designed for EZGO, Club Car, and Yamaha golf carts, these essential components help ensure proper torque, improve stance and clearance, and complete your wheel upgrade with confidence.
Frequently Asked Questions About Golf Cart Wheels and Tires
The correct size depends on your cart model, suspension setup, and intended use. Stock carts typically run smaller wheels, while lifted carts require larger wheels and tires.
The correct size depends on your cart model, suspension setup, and intended use. Stock-height carts typically have less tire clearance, while lifted carts can accommodate larger wheel and tire combinations.
Absolutely. Pre-mounted packages save time, ensure proper balance, and eliminate compatibility issues.
No. Golf carts require wheels with specific bolt patterns, offsets, and load ratings designed for golf cart use.
