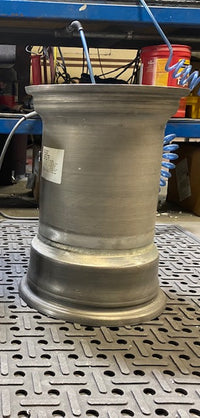

Build an unmistakably wide golf cart with the RealWheel 10x14 Aluminum Golf Cart Wheel. Measuring 10 inches in diameter and an impressive 14 inches wide, this specialty aluminum golf cart wheel creates an aggressive stance for custom, lifted, long-travel, and off-road golf cart builds.
RealWheel manufactures this wide golf cart wheel from structural-quality 6061-T6 aircraft-grade aluminum. Spun wheel halves, certified double heat treatment, precision CNC machining, and welded construction combine to produce a strong, straight, and consistently shaped wheel for demanding recreational applications.
⚠️ IMPORTANT: PRICE IS FOR ONE (1) WHEEL
Each order quantity includes ONE (1) RealWheel aluminum wheel only. Tires, lug nuts, valve stems, and additional wheels are not included. Select a quantity of 4 to order four wheels.
MADE-TO-ORDER LEAD TIME: APPROXIMATELY 4–8 WEEKS
This specialty wheel is manufactured to order. Production times are estimates and may vary. Please allow approximately 4–8 weeks for manufacturing before shipment.
Please note the size orientation: This wheel measures 10 inches in diameter by 14 inches wide. It is an exceptionally wide 10-inch wheel and should not be confused with a 14-inch-diameter golf cart wheel.
RealWheel 10x14 Specifications
| Wheel Diameter |
10 inches |
| Wheel Width |
14 inches |
| Bolt Pattern |
4x4 inches (4x101.6 mm) |
| Backspacing |
4 inches |
| Material |
6061-T6 aircraft-grade aluminum |
| Tire Design |
Tubeless |
| Construction |
Spun, CNC-machined, heat-treated, and welded aluminum |
Premium Aluminum Construction
- Structural-quality 6061-T6 aircraft-grade aluminum
- Certified double heat treatment for enhanced material strength
- CNC machining maintains precise manufacturing tolerances
- Spun wheel halves provide more uniform material thickness than conventional stamped halves
- Welded construction creates a strong, permanent wheel assembly
- Engineered to provide a round, straight, and consistent wheel profile
- Tubeless construction eliminates the need for an inner tube when paired with a compatible tubeless tire and valve stem
RealWheel Safe-Loc Safety Bead
The exclusive Safe-Loc safety bead helps retain a properly installed tire bead during demanding use. This design can eliminate the need for a separate beadlock in many applications while maintaining a clean, lightweight wheel assembly.
A separate beadlock may still be appropriate for extreme applications or unusually low tire pressures. Always follow the tire manufacturer’s inflation and installation requirements.
Golf Cart Fitment
The standard 4x4-inch bolt pattern is used by many Club Car, EZGO, Yamaha, and other golf carts. However, this wheel’s extreme 14-inch width makes it a specialty product intended primarily for heavily customized, lifted, long-travel, or off-road builds.
Before ordering, verify all of the following:
- Your cart uses a 4x4-inch four-lug bolt pattern
- The 4-inch backspacing clears the suspension, steering, hubs, brakes, and body
- Your selected tire is approved for a 10-inch-diameter, 14-inch-wide wheel
- Your lift kit, wheel spacers, or long-travel suspension provides adequate clearance
- The finished wheel-and-tire assembly will not contact the frame or body through the full steering and suspension range
Fitment warning: This is not a direct replacement for a standard factory golf cart wheel. Modifications may be required. Measure your cart carefully and confirm compatibility before ordering this made-to-order item.
Recommended Tire Application
Kenda Bear Claw tires are a popular choice for these extra-wide RealWheel wheels. Tire availability and approved rim-width specifications vary by tire size, so confirm compatibility with the tire manufacturer or a qualified installer before mounting.
Why Choose a 10x14 RealWheel?
- Creates an exceptionally wide and aggressive golf cart stance
- Ideal for custom lifted, long-travel, and off-road builds
- Aircraft-grade aluminum combines strength with lower weight than comparable steel designs
- Precision manufacturing promotes smooth, consistent rotation
- Tubeless design simplifies compatible tire installation
- Safe-Loc bead design provides additional tire-bead security
- Purpose-built construction offers a distinctive alternative to common cast golf cart wheels
What Is Included?
- One (1) RealWheel 10-inch-diameter by 14-inch-wide aluminum wheel
Not Included
- Tire
- Valve stem
- Lug nuts
- Center cap
- Wheel spacers or adapters
- Additional wheels
Installation Notes
- Professional tire mounting and wheel installation are strongly recommended.
- Use a compatible tubeless valve stem and tire approved for the wheel dimensions.
- Verify the proper lug-nut thread, seat style, and torque for your golf cart.
- Check tire pressure, wheel torque, steering clearance, and suspension clearance before driving.
- Recheck lug-nut torque after the initial break-in period.
Ordering reminder: The listed price is for one wheel. Select a quantity of 4 if your build requires four matching wheels.
Extra-wide wheels and tires can change steering effort, suspension loading, braking, handling, and vehicle stability. Install only on a properly configured cart and operate responsibly.
