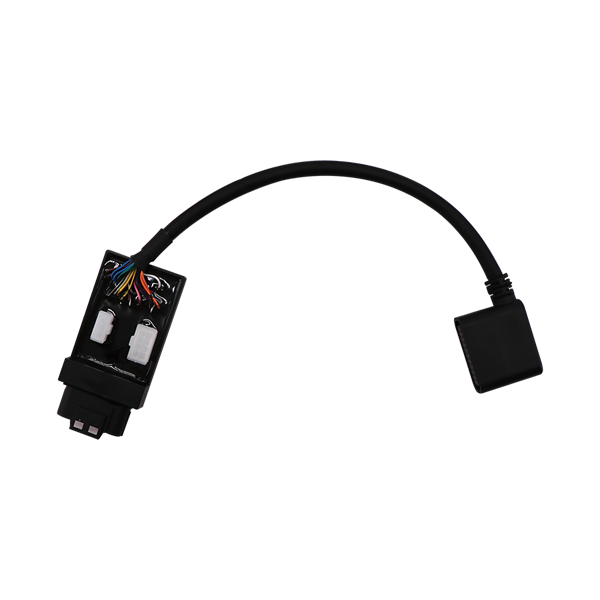

Navitas TSX3.0 Harness for Yamaha G29 / Drive YDRE – Moric 40-000513
Navitas TSX3.0 Harness for Yamaha G29 / Drive YDRE – Moric 40-000513

Navitas TSX3.0 Harness for Yamaha G29 / Drive YDRE – Moric 40-000513

  • Harness
  • Navitas
$81.25 USD $114.00 USD /
Subscription -

FREE SHIPPING ON ALL ORDERS OVER $150

Connect a Navitas TSX3.0 Controller to Your Yamaha G29

The Navitas TSX Harness for Yamaha G29 / Drive YDRE provides the vehicle-specific connection required to install a compatible Navitas TSX3.0 controller in Yamaha electric golf carts equipped with the factory Moric JW2 controller system.

Designed specifically for the Yamaha G29 platform, this harness connects the Navitas controller to the cart's original wiring system, eliminating the need to build or modify a custom controller harness. Navitas identifies 40-000513 as the correct TSX harness for Yamaha Drive YDRE (G29) applications using the Moric controller. Navitas Vehicle Systems

Designed for Navitas TSX3.0 Controllers

This harness is used with Navitas TSX3.0 440A and 600A DC motor controllers, providing the vehicle-specific interface between the controller and the Yamaha's existing electrical system.

It is an ideal choice when:

  • Installing a Navitas TSX3.0 controller in a Yamaha G29
  • Replacing a damaged or missing Navitas vehicle harness
  • Moving an existing TSX3.0 controller to a compatible Yamaha application
  • Completing a Yamaha G29 Navitas controller upgrade
  • Replacing the harness from an existing Navitas TSX conversion package

Navitas documentation identifies this harness specifically for the Moric JW2 controller used in Yamaha Drive/YDRE G29 applications. Wild About Carts

Yamaha G29 / Drive Fitment

Designed for compatible:

  • Yamaha G29
  • Yamaha Drive
  • Yamaha YDRE electric golf carts
  • Factory Moric JW2 controller
  • 48V electrical systems
  • Navitas TSX3.0 440A controllers
  • Navitas TSX3.0 600A controllers

The applicable Moric system uses a 26-pin controller connector, which can be helpful when confirming fitment before ordering. Golf Cart Lab

Important: This harness is not interchangeable with the Navitas harness used on Yamaha G19/G22 carts. Those applications use a different harness and controller connection. Always verify the existing controller and connector before purchasing. Navitas Vehicle Systems

What's Included

  • Navitas Yamaha G29 TSX Vehicle Harness – 40-000513

Controller, On-The-Fly Programmer, motor and other installation components are sold separately unless otherwise specified.

Part Number Cross-Reference

I would definitely include these numbers on your GCMod page because different distributors use different identifiers for the same harness:

Navitas SKU: 40-000513
FSIP SKU: 87-40000513
Nivel #: 31926
Red Hawk #: CON-NV006
