Connect a Navitas TSX3.0 Controller to Your Club Car

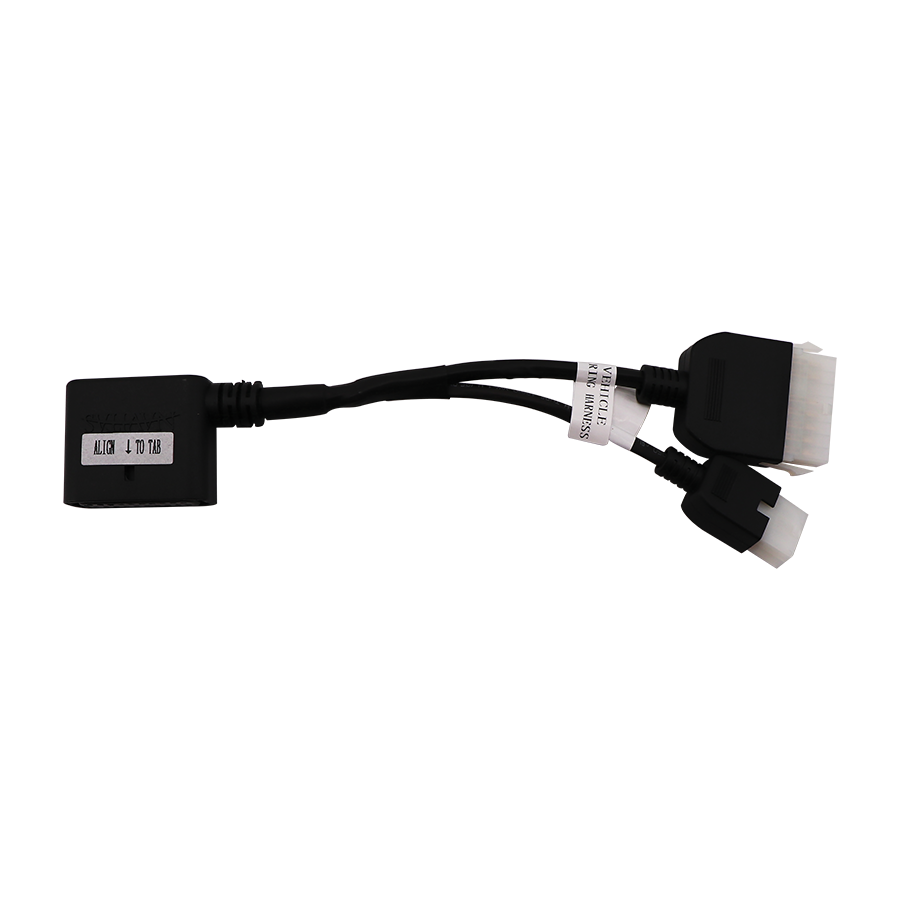

The Navitas TSX Harness for Club Car 1510/1515 is the vehicle-specific wiring harness designed to connect a compatible Navitas TSX3.0 controller to Club Car electric golf carts equipped with a Curtis 1510 or 1515 controller system.

Designed for compatible Club Car IQ, Precedent, Onward, DS, and Tempo models, this harness provides the electrical interface between the Navitas controller and the cart's existing vehicle wiring. Navitas identifies 40-000542 as the TSX harness for these Club Car applications.

Designed for Navitas TSX3.0 Controllers

This harness is designed for use with compatible Navitas TSX3.0 DC motor controllers, including:

  • Navitas TSX3.0 440A – 10-000766
  • Navitas TSX3.0 600A – 10-000685



Both controllers operate on 36V–48V systems, while the 40-000542 harness provides the Club Car-specific connections needed for the Curtis 1510/1515 application.

This harness is a good choice when:

  • Installing a Navitas TSX3.0 controller in a compatible Club Car
  • Replacing a damaged or missing Navitas controller harness
  • Completing a TSX3.0 controller upgrade
  • Moving a compatible TSX controller into a Curtis 1510/1515 Club Car
  • Replacing the harness from an existing Navitas TSX controller package



Club Car Fitment

Navitas lists 40-000542 for compatible:

  • Club Car IQ
  • Club Car Precedent
  • Club Car Onward
  • Club Car DS
  • Club Car Tempo
  • Curtis 1510 controller systems
  • Curtis 1515 controller systems



Navitas' TSX installation documentation specifically identifies 40-000542 as the harness for Curtis 1510/1515 controllers used in Club Car Precedent and DS applications, while its current vehicle application listings expand compatibility to IQ, Precedent, Onward, DS, and Tempo.

Vehicle-Specific Connections

The 40-000542 harness interfaces the Navitas TSX controller with important Club Car vehicle systems, including connections for:

  • Throttle input
  • Foot switch
  • Forward and reverse
  • Key switch
  • Main solenoid
  • Speed sensor
  • Charger interlock
  • Reverse buzzer
  • On-The-Fly Programmer connection



Navitas provides dedicated wiring diagrams for 2013 and 2014 Club Car Precedent applications using this harness.

Important Fitment Information

This harness is specifically designed for Club Car applications equipped with the applicable Curtis 1510/1515 electrical system.

Do not order based on the Club Car model name or year alone. Club Car used multiple controller and electrical configurations, so we recommend confirming the controller model before purchasing.

Also note that Navitas specifically states that this harness/application is not compatible with Club Car Regen 2 carts.

What's Included

  • Navitas TSX Harness for Club Car 1510/1515 – 40-000542



Navitas TSX controller, On-The-Fly Programmer, motor, cables, and other components are sold separately unless otherwise specified.

Part Number Cross-Reference

I would definitely include all four of these identifiers on the GCMod product page:

Navitas SKU: 40-000542
FSIP SKU: 87-40000542
Nivel #: 31923
Red Hawk #: CON-NV002
