Navitas TAC2 600A 5kW AC Conversion Kit for EZGO TXT 48V 1206HB CAN
Navitas TAC2 600A 5kW AC Conversion Kit for EZGO TXT 48V 1206HB CAN

Navitas TAC2 600A 5kW AC Conversion Kit for EZGO TXT 48V 1206HB CAN

  • AC Conversion
  • Navitas
$1,899.00 USD $2,000.00 USD /
Subscription -

FREE SHIPPING ON ALL ORDERS OVER $150

Upgrade Your EZGO TXT with Navitas TAC2 AC Performance

Transform your EZGO TXT with the Navitas TAC2 600A 5kW AC Conversion Kit. Designed specifically for compatible 48V EZGO TXT golf carts equipped with the factory Curtis 1206HB controller, this complete DC-to-AC conversion kit replaces the factory DC drivetrain with a powerful and efficient Navitas AC system.

The kit pairs a 600-amp Navitas TAC2 CAN controller with a 5kW AC motor to deliver increased torque, stronger acceleration, improved hill-climbing performance, and greater drivetrain efficiency. It is an excellent upgrade for modified carts, larger wheels and tires, additional passenger loads, or drivers looking for substantially more performance than the factory system can provide.

600A TAC2 Controller with Bluetooth & CAN

The included Navitas TAC2 600A controller features Bluetooth connectivity and CAN communication, providing advanced control over your golf cart's performance and allowing compatible components to communicate across the vehicle's electrical system.

Using the Navitas Dashboard App, compatible settings and vehicle information can be accessed from your smartphone or tablet. Adjustable parameters include:

  • Maximum forward and reverse speed
  • Acceleration characteristics
  • Current limits
  • Regenerative braking
  • Battery over-discharge protection
  • Additional performance settings



The included Navitas On-The-Fly Programmer also provides convenient real-time adjustment of speed, acceleration, and regenerative braking.

Navitas TAC2 600A 5kW Kit Features

  • 600A Navitas TAC2 AC controller
  • 5kW Navitas AC motor
  • Designed for 48V EZGO TXT applications
  • CAN-enabled communication
  • Built-in Bluetooth connectivity
  • Navitas Dashboard App compatibility
  • On-The-Fly Programmer included
  • Adjustable speed, acceleration, and regenerative braking
  • Increased torque and acceleration compared to the factory DC system
  • Improved AC drivetrain efficiency
  • IP65-rated TAC2 controller
  • Designed for straightforward installation with vehicle-specific components



EZGO TXT 48V Fitment

This Navitas AC conversion kit is designed for:

  • EZGO TXT electric golf carts
  • 48V electrical systems
  • Factory Curtis 1206HB controllers
  • Non-ELiTE models



Important: This kit is not compatible with EZGO TXT ELiTE models equipped with the factory lithium system. EZGO produced TXT carts with several different electrical and controller configurations, so we recommend verifying that your cart has a Curtis 1206HB controller before ordering.

This kit can be used with compatible aftermarket drop-in lithium battery systems, including Eco Battery, when the battery system is properly sized and configured for the vehicle.

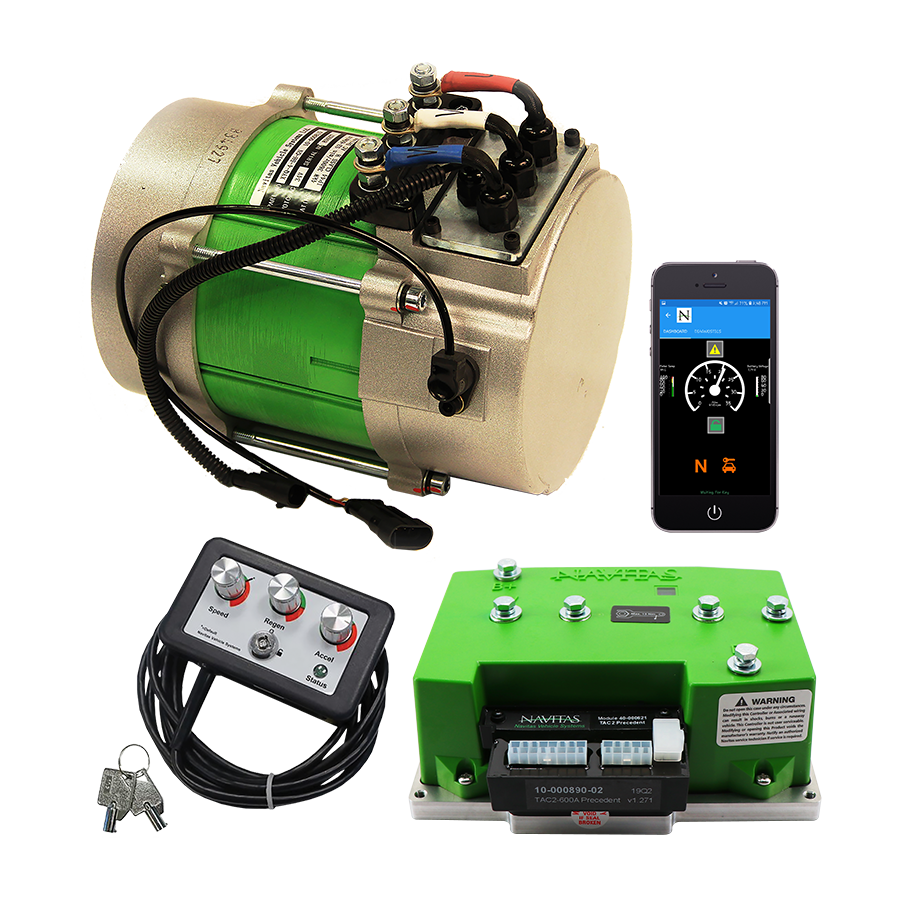

Complete DC-to-AC Conversion Kit

This is a complete drivetrain conversion package designed to replace the compatible factory DC motor and controller system.

  • Navitas TAC2 600A CAN Controller with Bluetooth
  • Navitas 5kW AC Motor
  • EZGO TXT vehicle-specific adapter harness
  • TAC2 controller mounting plate
  • Motor speed sensor / temperature harness
  • AC motor phase cable
  • Run/Tow switch mounting plate
  • Navitas On-The-Fly Programmer
  • Required installation hardware
  • Installation instructions



Built for Modified and High-Performance EZGO TXT Carts

The combination of a 600A controller and 5kW AC motor makes this Navitas conversion kit an excellent choice for performance-oriented EZGO TXT builds. Increased available torque is especially beneficial for carts running larger wheels and tires, carrying additional passengers, climbing hills, or operating in other demanding conditions.

The efficient AC drivetrain also provides smooth acceleration and gives you greater control over how the cart responds through the programmable Navitas controller.

Optional CAN Display Compatibility

Because this kit is CAN enabled, it is compatible with select Navitas CAN accessories, including the optional Navitas CAN touchscreen display. When paired with compatible CAN-enabled components, the system can provide additional vehicle and battery information through the display.

Part Number Cross-Reference

  • Navitas SKU: 10-000891-27
  • Nivel #: 25-163
  • Red Hawk #: CON-NV65-1206HB-AC-CAN
  • FSIP SKU: 222-48VCANTXTTAC2-5



Fitment Note: Verify the factory controller and electrical system before ordering. This kit is specifically designed for compatible 48V EZGO TXT carts with the Curtis 1206HB controller and is not intended for factory EZGO ELiTE lithium models.
